Spot & Resistance Welding Machines

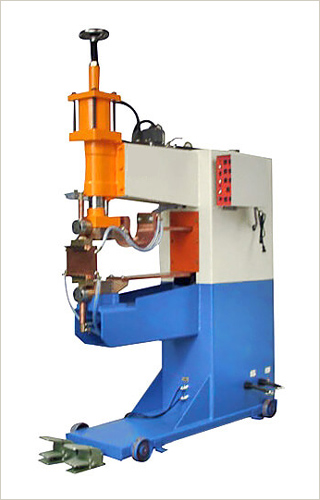

Limah Pneumatic Spot Welding Machines
Most suitable for mass production due to pneumatic operation.

Machine conforms to latest Indian and International Standards. Selection of correct weld time using Solid State Electronic Timer ranging from 5-99-199 cycles.

  • Quick current selection using Rotary Tap Switch
  • “T” slotted face plate allows both vertical and horizontal adjustment of lower arm
  • Increased current carrying section because special electrode holder system
  • Easy accessibility for maintenance of Electronic, Electronic & Mechanical components
  • Spot Welding units are designed and developed to meet the needs of a vast number of metalfabrication shop. Besides spot welding the machine can also be used for Electro blazing, cross wire welding and resistance heating

    • SCOPE AND APPLICATIONS:

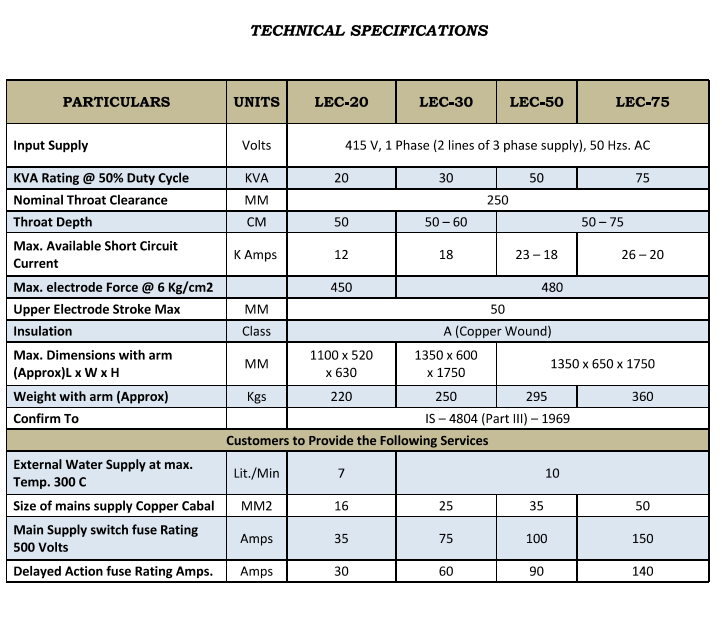

    Limah Pneumatic operated spot-welding machines are offered in 20, 30, 50 & 75 KVA Models.

    All machines are made of steel fabricated rigid structures that eliminate the minutest spot deflection.

    Pneumatic spot welders are designed for high speed production jobs and meet the vast need of Metal fabrication industries including sheet metal components, cross wire welding, kitchenware, electro brazing & resistance heating etc.

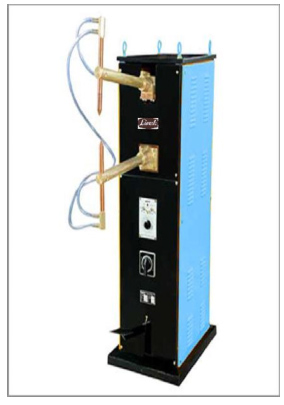

Limah Rocker Arm Type Spot Welding Machine
Scope and Applications Limah Pedal operated Rocker arm type spot welding machines are offered in 6,8,10,15,20 & 25 KVA models each with three standard throat depths to cover practically all applications. All machines are made of steel fabricated rigid structures to eliminate the minutest spot deflections.

Limah Spot Welding Machines are elegant in design, and versatile in mass production lines of Engineering Industries, Sheet Metal containers, Drums, Barrels, Electrical and Electronic Instruments, Ratio & Communication equipment, Furniture, Kitchenware, Automobile Assembly and Ancillary Lines, Toys, Air Conditioners, Refrigerators, Electrical Machines and Switchgear manufacturing units.

An accurate electronic timing device is provided in each Spot Welders. The timer is calibrated in two ranges. The short time range from 5 to 50 cycle and longer 1 to 10 seconds in steps which provides ease and comfort to operators for mass production.
