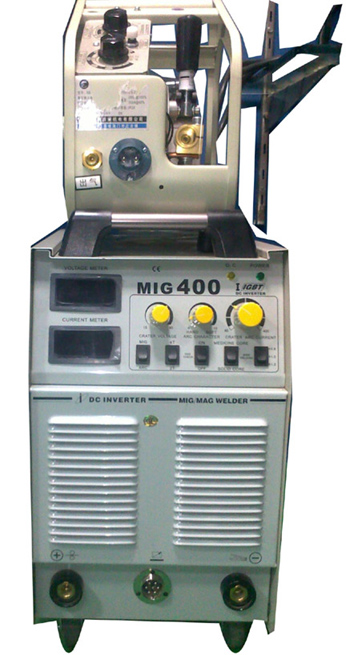

400 Ampere MIG Welding Inverter

Three Phase, 400 Ampere, MIG Welding Inverter with separate Wire Feeder.

Limah 400 Ampere MIG Welding Inverter with separate Wire Feeder is suitable for Welding upto 10 mm thick MS and Stainless Steel SS with upto 1.2 mm thick MIG Wire. It gives fine weld seam with almost no spatter. It can also be used in DC Arc Welding MMA mode.

Input power voltage	:    AC380V±15%
Input voltage frequency	:    50/60 Hz
Rated input power	:    17.2 KVA
Rated input current	:    26.1 A
Output current range	:    50-400 A
Rated output voltage	:    42.4 V
Duty cycle	:    60%
Efficiency	:    85%
Power factor	:    0.93
Insulation class	:    B
Protection class	:    IP21
Feeding speed	:    2.5-13 m/min
Type of wire feeder	:    External, 4 Roll
Diameter of coil	:    300 mm
Post gas
Earth cable
Thickness	:    above 0.8 mm
Diameter of wire	:    0.8/1.0/1.2 mm
Weight	:    56 KG
Dimension	:    604×325×614 mm
