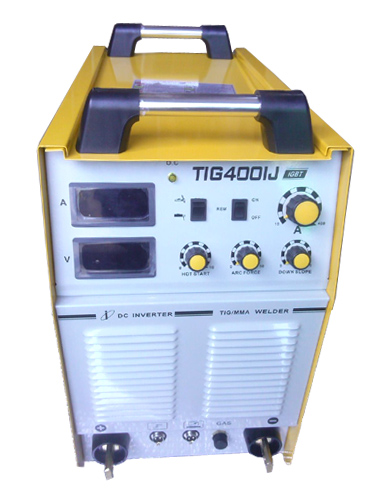

400 Ampere TIG Welding Inverter

Three Phase, 400 Ampere, Dual Function DC TIG / MMA Arc Welding Inverter Machine

Limah TIG 400 A is Three Phase, 400 Ampere, Portable DC TIG / MMA Arc Welding Inverter Machine with Power Saving Inverter Technology. It has HF Arc Striking function and is suitable for Welding Stainless Steel ( SS ), Mild Steel ( MS ) and any other metal except Aluminum.

Input Power Voltage	:    AC415V+10% 3Ø
Input  Voltage Frequency	:    50/60
Rated Input Power	:    13.2 KVA
No Load Voltage	:    69 V
Output Current Range	:    20-400 A
Max. Output Voltage
Max. Input Current	:    20 A
Duty Cycle	:    60%
No- Load Consumption	:    56 W
Arc-Strating
Efficiency	:    85%
Power Factor	:    0.95
Insulation Class
Weight	:    36 KG
Overall Dimensions	:    640x325x614
Protection Class	:    IP21
Post Gas Time	:    0.1-15
Arc Force Adj. Range	:    10-200 A
Pre-Flow Time	:    0.1-15
Down Slope Time	:    0.1-15
Pulse Current
Pulse Frequency	:    0.2-20
Pulse Width	:    1-100 %
