Welding Inverters - ARC Series

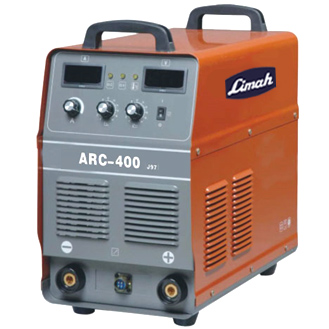

Three Phase 400 Ampere, Heavy Duty DC MMA Welding Inverter
Limah 400 Ampere welding inverter is available in 2 model, 400 GI & 400 IJ

400 GI is light weight, Heavy Duty welding Machine suitable for continuous working with 12, 10 & 8 swg Welding Electrodes with suitable welding cables that can extend up to 25 meters. MMA 400 GI is capable of welding both Stainless Steel ( SS ) and Mild Steel ( MS ) with fine finish and minimum spatter.

400 IJ is light weight, Heavy Duty welding Machine suitable for continuous working with 12 10, 8 swg Welding Electrodes with suitable welding cables that can extend up to 60 meters . MMA 400 IJ is capable of welding both Stainless Steel ( SS ) and Mild Steel ( MS ) with fine finish and minimum spatter.

MMA 400 I is capable of welding both Stainless Steel ( SS ) and Mild Steel ( MS ) with fine finish and minimum spatter.


SPECIFICATION - Limah 400 GI
Input Voltage :  AC415V±15%, 3Ø
Input Frequency :  50/60Hz
Max. Input Power :  18.2KVA
Max. Input Current :  27.6A
No- Load Voltage :  67.5V
Output Current Range :  40-400A*
Rated Output Voltage :  36V
Duty Cycle :  60%
No- Load Power :  60W
Efficiency :  85%
Power Factor :  0.93
Insulation Class :  B
Protection Class :  IP21
Weight :  22 Kgs ( Portble )


SPECIFICATION - Limah 400 IJ
Input Voltage :  AC415V±15%, 3Ø
Input Frequency :  50/60Hz
Max. Input Power :  18.2KVA
Max. Input Current :  27.6A
No- Load Voltage :  68V
Output Current Range :  40-400A
Rated Output Voltage :  40V
Duty Cycle :  60%
No- Load Power :  60W
Efficiency :  85%
Power Factor :  0.93
Insulation Class :  B
Protection Class :  IP21
Weight :  28kgs ( Mounted on wheels )
